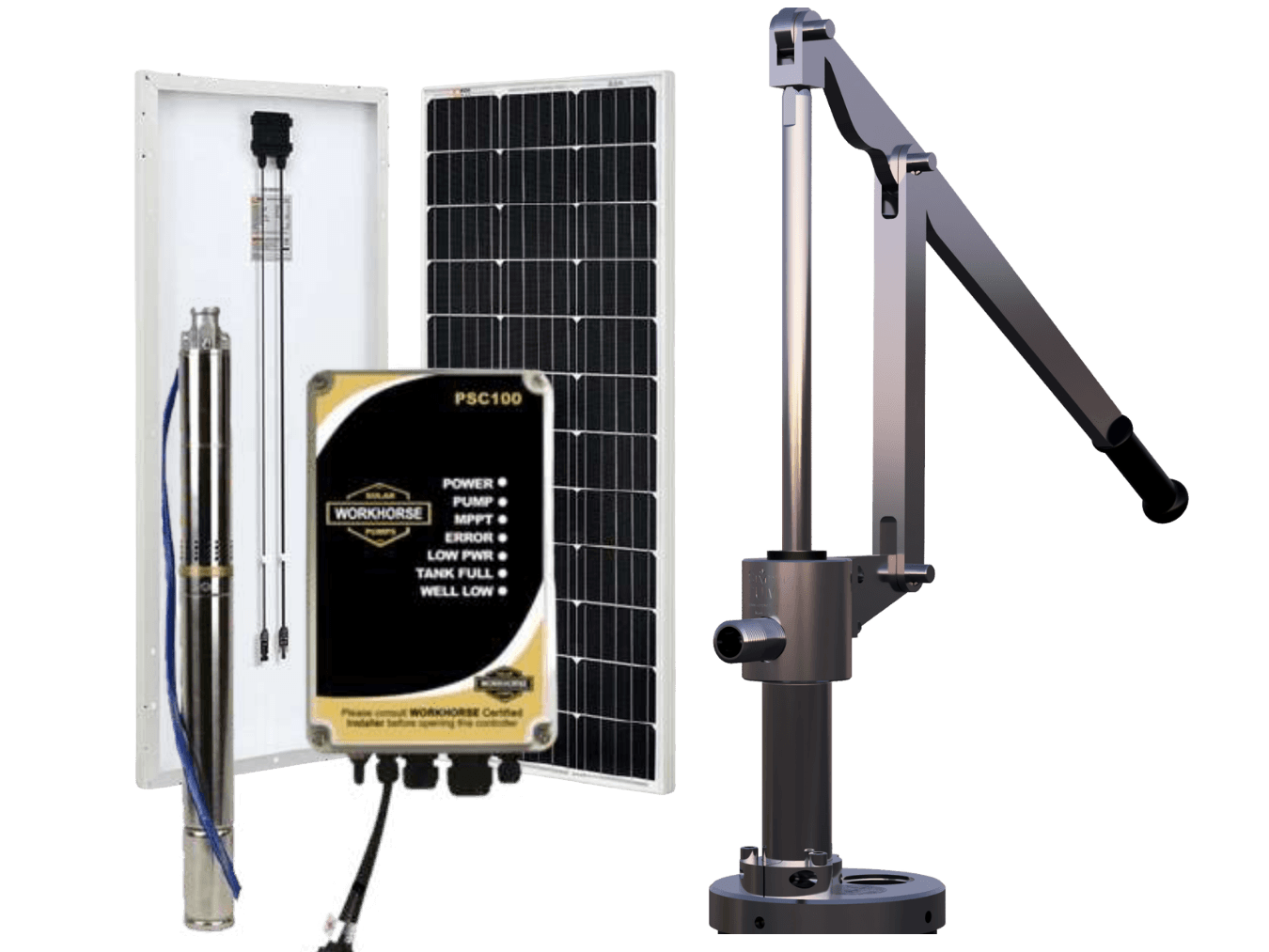

Simple Pump Inline Dual-Pump Solar Well System
Zero-switch solar submersible + manual backup pump from one well.
The Simple Pump Inline Dual-Pump Solar Well System is the only solar well pump system with true zero-switch operation.
The Workhorse Narrow Series solar submersible and the Simple Pump hand pump share the same well column through the proprietary Simple Pump Inline Dual-Pump Valve Assembly. No manual valve switching. No plumbing changes. Ever.
Solar panels power the Workhorse submersible for automated daily water delivery. When you reach for the Simple Pump lever arm, the valve shifts automatically, giving you immediate manual backup water.
Two fully independent water sources. One well. Zero switches. Water security without compromise.
Available through Simple Pump dealers and authorized Workhorse Pumps professional installers.
True Water Independence or Just Another Dependency?
Submersible pumps stop working when you need them most
Electricity Dependent Water
When your submersible motor stops, your pump system stops delivering water
Single Point of Failure
Submersible pumps leave you stranded during any power condition
Emergency Preparedness Gap
When disaster strikes, you need water access regardless of power status
Don't Wait for Emergency to Strike
The best time to install a backup water system is before you need it. When the power goes out, it's too late to wish you had prepared.
Two Water Sources. One Well.
The Workhorse solar submersible pump handles your daily water automatically. The Simple Pump hand pump is always ready as backup — no batteries, no switching, no compromise. Available through authorized dealers.
Solar-automated daily pumping
Workhorse submersible runs 5–10 hours/day on solar power. No batteries required — direct solar operation.
Manual backup always ready
Simple Pump lever arm works independently at any time — even while solar is running. No batteries, no power required.
Up to 500 ft Max TDH (W3H-6-500)
W3H-6-500: 500 ft Max TDH. W3C-25-200 and W2H-5-200: 200 ft Max TDH. Simple Pump hand pump: up to 325 ft static water level.
Workhorse Pumps Certifications: CE, TUV, NRCS
Workhorse Narrow Series meets CE, TUV, and NRCS requirements. Simple Pump components manufactured with NSF/FDA certified materials meeting Safe Drinking Water Act requirements.
No-programming PSC100 controller
Manual speed and timer dials — no app, no Wi-Fi, no programming. Low-water auto-shutoff included.
Inline Dual-Pump Valve Assembly: Manufactured by Simple Pump
The valve assembly connecting the two systems is Simple Pump's own proprietary product. 15-year warranty.
Solar System Specifications
Detailed specifications for the Simple Pump Inline Dual-Pump Solar Well System. All Simple Pump systems are engineered for reliability and built to last.
Manual Pump Performance
Water When You Need It
Deep Well Access
Reliable water from wells up to 325 feet static water level
Emergency Ready
Battery backup and manual lever arm ensure water access during extended outages
Peace of Mind
Simple Pump Inline Dual-Pump Valve Assembly: 15-year Simple Pump warranty. Workhorse pump: 3-year Workhorse warranty. Simple Pump hand pump: Simple Pump standard warranty. - Made in USA since 1999
Configure Your Water Security System
Every well is unique. Our experts will configure the perfect manual pump system for your specific static water level and daily water needs.
Workhorse Narrow Series Models
Three models for every well configuration. Helical rotor handles sandy water and deep installations. Centrifugal handles high-flow stock and irrigation applications. PSC100 solar controller included with every model — no programming required.
Authorized Distributor

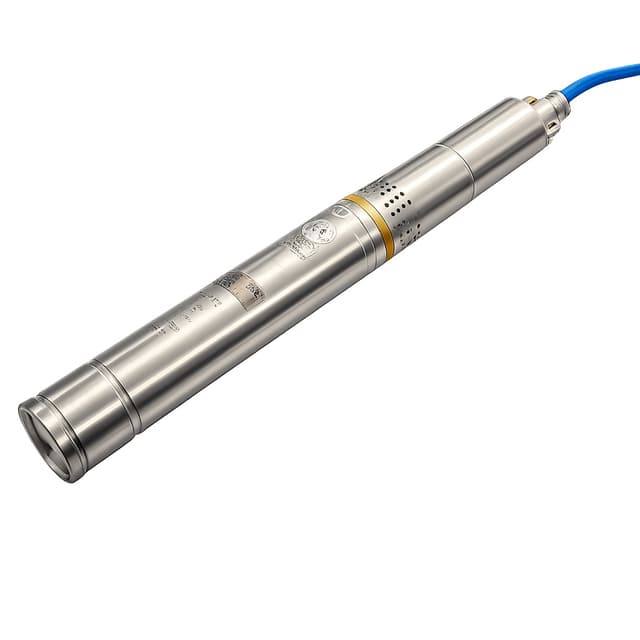

W2H-5-200
W3H-6-500
| Model | Type | Max Flow | Max TDH | Diameter | Min Casing | Solar Input | Valve Assy |
|---|---|---|---|---|---|---|---|
| W2H-5-200 | Helical | 5 GPM | 200 ft TDH | 2.01" | 3" | DC 54–72 Vmp | 400–800W | Valve-1/2-Assy |
| W3H-6-500 | Helical | 6 GPM | 500 ft TDH | 3.01" | 4" | DC 36–72 Vmp | 200–800W | Valve-1-Assy |
| W3C-25-200 | Centrifugal | 25 GPM | 200 ft TDH | 3.25" | 4" | DC 54–72 Vmp | 400–800W | Valve-1-Assy + SS bushing |
Max Voc 90V all models. W3H-6-500 also compatible with 24V solar arrays (DC 36V Vmp). Battery backup 24V or 48V (optional).
Notes:
- •Workhorse Pumps Certifications: CE, TUV. Meets NRCS requirements.
- •Warranty: 3-year Workhorse warranty. Simple Pump Inline Dual-Pump Valve Assembly: 15-year Simple Pump warranty.
- •Sand tolerance: Helical (W2H/W3H): <1g/m³ | Centrifugal (W3C): <50g/m³
- •Run time: Unlimited continuous duty. Solar: 5–10 hrs/day depending on location.
PSC100 Solar Controller — Included with Every Narrow Series Pump

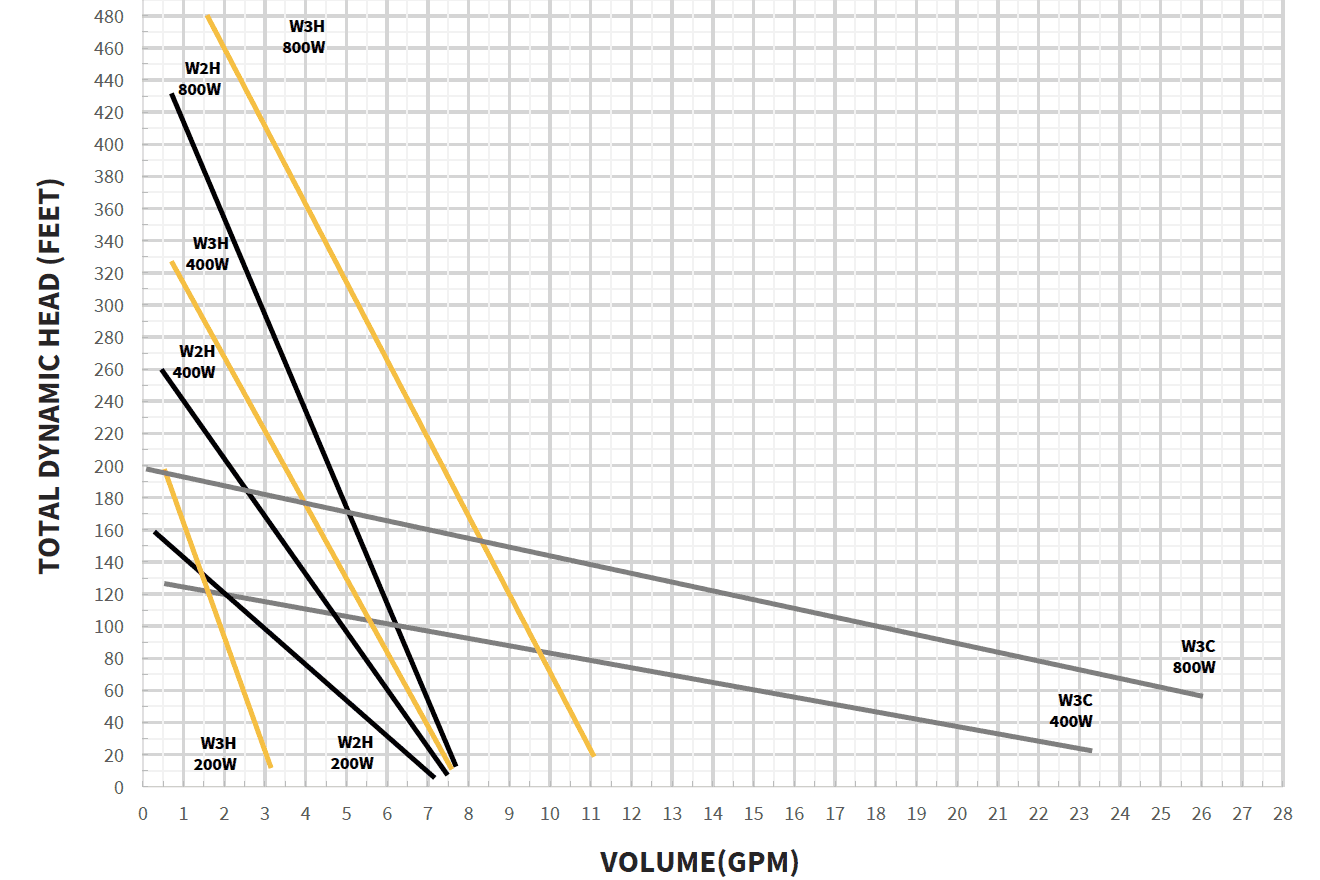

Performance Chart: Flow Rate vs. Total Dynamic Head
Shows GPM output at different TDH (well depth + pressure head) values for each model at 200W, 400W, and 800W solar input. W3C centrifugal curves (gray) show high-volume, lower-head performance. W2H and W3H helical curves (black/gold) show deep-well capability.
Source: Workhorse Pumps Narrow Series specifications. Chart used with permission.
Spare Parts & Seal Kits
Browse genuine spare parts, seal kits, and maintenance components compatible with your Simple Pump Inline Dual-Pump Solar Well System.
Typical Maintenance Interval: 5-10 years
Simple Pump systems require minimal maintenance with long service intervals between seal replacements.
Spare Parts Kit (Heavy-Duty)
Replacement parts kit for the Simple Pump heavy-duty handle assembly. Includes critical wear components to restore reliable operation and smooth performance.
Spare Parts Kit (Standard)
Replacement parts kit for the Simple Pump standard handle assembly. Includes critical wear components to restore reliable operation and smooth performance.
Ready to Get Started?
Seeing is believing. Request a detailed quote and our experts will help you configure the perfect Simple Pump Inline Dual-Pump Solar Well System for your well.
Configure Your Well Pump System
Complete off-grid water independence with solar power. Our experts will configure the perfect system for your specific requirements and provide accurate pricing based on your well specifications.
What You'll Receive
Request a free quote for exact pricing based on your well specifications

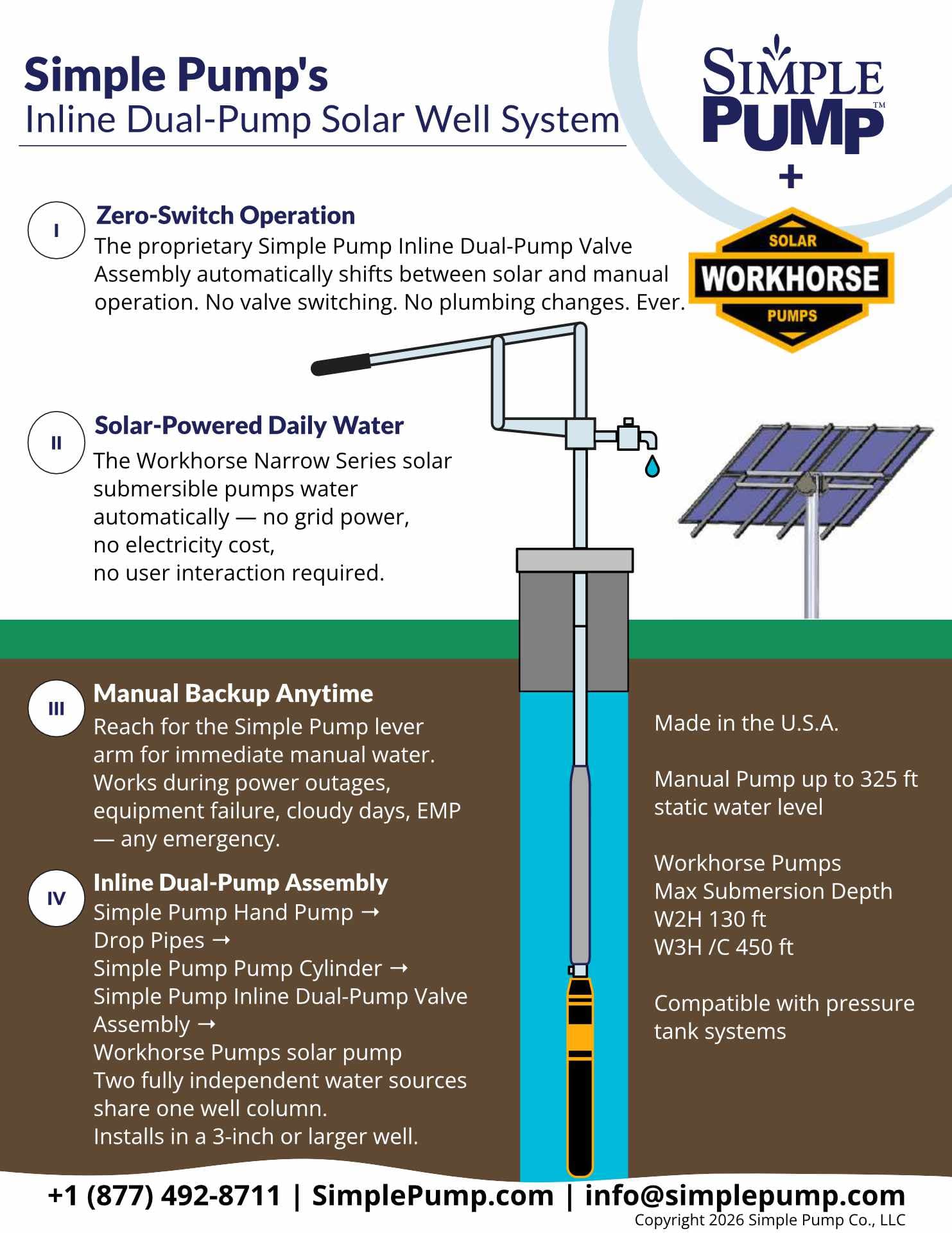

How the Combined System Works
Bottom to top: five components, two water paths, one well.
Workhorse Submersible Pump
Sits at the base of the assembly. Powered by solar panels on the surface. Runs 5–10 hours/day automatically. Pushes water up through the Simple Pump Inline Dual-Pump Valve Assembly.
Simple Pump Inline Dual-Pump Valve Assembly
Manufactured by Simple Pump. Connects the Workhorse pump to the Simple Pump cylinder via NPT threads. Opens under pressure (solar pumping). Closes under vacuum (hand pumping). The two systems share the water column without interference.
Spring Check Valve
Positioned above the Simple Pump Inline Dual-Pump Valve Assembly. Prevents water backflow when switching between modes.
Simple Pump Cylinder + Drop Pipes
Standard Simple Pump cylinder operates via the lever arm. Same 325 ft max static water level as a standalone Simple Pump — the submersible does not reduce manual capability.
Simple Pump Pump Head with Lever Arm
Sits on the well at the surface. Lever arm parked = solar is active. Lift the lever arm to pump manually at any time — even while solar is running.
Dealer Installation Required
Available through Simple Pump dealers and authorized Workhorse Pumps professional installers. Your dealer will size the solar array and configure the PSC100 for your well.
Find a dealer near you →Frequently Asked Questions
Everything you need to know about the Simple Pump Inline Dual-Pump Solar Well System
Have More Questions?
Our pump experts are here to help you choose the right system for your needs.
Complementary Systems
Combine with manual systems for ultimate reliability
Deep Well Hand Pump
Up to 325 feet
Manual operation for static water levels up to 325 feet - the deepest reach of any hand pump
Best for:
Deep wells, backup water source
Shallow Well Suction Pump
Up to 25 feet
Perfect backup solution for static water levels up to 25 feet with pressure tank capability
Best for:
Shallow wells, easy installation
Inline Dual-Pump Valve Assembly
Submersible pump integration
Inline valve assembly that connects any compatible submersible pump to your Simple Pump — zero-switch dual-pump operation from a single well
Best for:
Submersible integration, dual-pump systems
Not Sure Which System Is Right for You?
Our quick price estimate tool helps you choose the perfect pump based on your static water level, water needs, and specific requirements.
Need personalized recommendations? Our water system experts can help you choose the right solution.
Already Have One of These Systems?
The Simple Pump Inline Dual-Pump Valve Assembly makes it easy to add the other. Whether you're starting from a Simple Pump or a Workhorse, the path to a zero-switch dual-pump system is a single valve upgrade.
Already Have a Simple Pump Hand Pump?
Add a Workhorse Narrow Series solar submersible to your existing Simple Pump system. The Inline Dual-Pump Valve Assembly is compatible with every Simple Pump cylinder manufactured since 1999 — no new pipe string, no new pump head.
- ✓Works with 100CA, 125CA, and 200CA cylinders
- ✓Manual performance unchanged after installation
- ✓Workhorse model sized for your well depth and flow needs
Already Have a Workhorse Pump Installed?
Add a Simple Pump hand pump as a no-switch manual backup. The Inline Dual-Pump Valve Assembly threads inline between your existing Workhorse pump and a new Simple Pump cylinder — giving you manual water access any time, no batteries required.
- ✓Compatible with Workhorse W2H-5-200, W3H-6-500, and W3C-25-200
- ✓Solar operation unchanged — Workhorse continues running normally
- ✓Hand pump provides manual backup up to 325 ft static water level
Automated Water. Manual Backup. One Well.
The Workhorse solar submersible handles your daily water automatically. The Simple Pump lever arm is always there when you need it — no batteries required, no grid dependency. Available through Simple Pump dealers and authorized Workhorse Pumps professional installers.
✓ CE & TUV certified (Workhorse) • ✓ Simple Pump Inline Dual-Pump Valve Assembly: 15-year warranty • ✓ Simple Pump since 1999
